Optoma brings to the market its new flagship laser projectors – Optoma ZU1050 and Optoma ZU660. Featuring Optoma’s DuraCore technology, these two WUXGA projectors combine longer-lifetime light source and an independent IP rated dust certification to ensure reliability and minimal maintenance during its lifetime. Designed for even the most complex professional installations, the ZU1050 and ZU660 offer multiple optional lenses ranging from TR0.36~5.5 for ultimate flexibility.

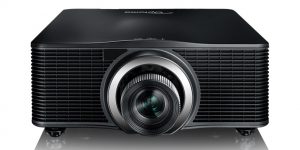

Optoma ZU1050

The Optoma ZU1050 is an ultra-bright 10,000 ANSI lumen, WUXGA projector.  It achieves superior color rendition through MCL (MultiColor Laser) technology, which combines red and blue laser diodes to enhance color performance and deliver visually striking lifelike images with exceptional detail. Perfect for bringing outstandingly bright, vivid, accurate colors with high contrast detailed visuals, the ZU1050 enables spectacular image quality for every professional application. It features built-in edge-blending and warping for large-scale projection or stacking.

The Optoma ZU660 is a bright and robust 6,500 lumens, WUXGA projector. It features Optoma’s DuraCore technology enclosed in an IP5X certified optical engine. Delivering outstanding reliability, high brightness, stunning colors, and spectacular image quality, the ZU660 is precision engineered to power larger than life experiences. Thanks to its sophisticated thermal engineering, the ZU660 has the most compact size among the 6K-lumen range of laser projector products, saving both labor and equipment costs during installation.

Featuring an airtight optical engine that has been independently certified, Optoma ZU1050 and Optoma ZU660, the latest professional ‘fit and forget’ models, offer spectacular versatility and reliability.  Designed for continuous 24/7 operation, both of Optoma ZU1050 and ZU660 support 360° and portrait orientations for flexible installation and with 100 variable power and luminance settings, are perfect for simulation, live events and almost any challenging environment.

 ModelOptoma ZU1050
optoma ZU660
 Native Resolution WUXGA 1920 x 1200 WUXGA 1920 x 1200
Display Technology DLP DLP
 Brightness 10000 ANSI lumens 6,000 ANSI lumens (6,500 center lm)
 Contrast 2,000,000:1 Extreme Black enabled, 2000:1 Full on/off 2,000,000:1 Extreme Black enabled, 2000:1 Full on/off
 Power Consumption 770W +/- 15% @110V AC (Normal Mode)
395W +/- 15% @110V AC (Eco Mode)
740W +/- 15%@220VAC (Normal Mode)
385W +/- 15%@220VAC (Eco Mode)
 650W +/- 15% @110V AC (Normal Mode)
470W +/- 15% @110V AC (Eco Mode)
620W +/- 15%@220VAC (Normal Mode)
455W +/- 15%@220VAC (Eco Mode)
 Noise (Normal/Eco mode) 35/32 dB 36/34 dB
 Weight 23.4 kg 17 kg
 Size (mm) 484 x 509 x 185 (elevator foot excluded) 484 x 509 x 185 (elevator foot excluded)
 Optional Lens 6 optional lenses, TR 0.36-5.5 6 optional lenses, TR 0.36-5.5
 Light Source Blue + Red Laser Diodes Laser Diodes
 Light Source Life 20,000 hours 20,000 hours
 I/O In : 3G-SDI x1 / HDMI x1 / VGA x1 / DVI-D x1 / HDBaseT x1
Out : VGA x1 / HDMI x1 / USB Power
Control : RS232C / Remote / 3D Sync in / 3D Sync out / RJ45
Service : USB
 In : HDMI x2 / VGA x1 / DVI-D x1 / HDBaseT x1
Out : VGA x1
Control : RS232C / Wired Remote Port / 3D Sync in / 3D Sync out / RJ45
 Thermal Dissipation 3,224.5 BTU/hr (normal mode) 2,218 BTU/hr (normal mode)
